Overview for the Key Status Tab

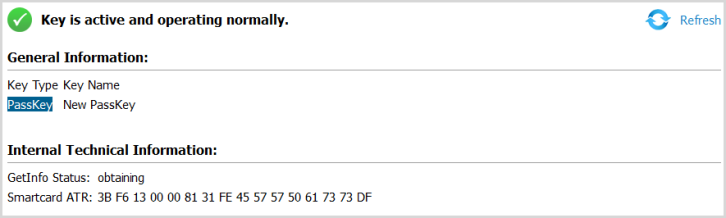

The Key Status tab shows the status of the Keys in your WWPass KeySet—PassKey and Service Keys. The tab also shows general information and internal technical information for your Keys:
- General Information identifies which Key in a KeySet is currently presented to your computer. It consists of:
- Key Type—This is either PassKey or Service Key.
- Key Name—This is the name you specified when you activated the Key in WWPass Key Services.
- Internal Technical Information might be needed for advanced troubleshooting if you contact the WWPass Service Desk. The same information is shown for Services Keys. It consists of:
- GetInfoStatus—This is a status code returned by the PassKey’s Smart Card. PassKeys use Smart Card technology for a number of WWPass solutions
- Smart Card ATR—This is the Smart Card ATR (Answer to Reset) output for a PassKey. ATR conveys information about communication parameters and state for a Smart Card following electrical reset of its chip by a Smart Card reader. The presence of an ATR is one indication that the card is operative. The ATR string identifies who made or issued a PassKey’s Smart Card.
Using the Key Status tab
Follow the steps below to check status and information for one or more Keys in your WWPass KeySet.
To check Key status:
- a PassKey or Service Key to your computer.
- Click Dashboard's Key Status tab.
Note: If a Key is not presented before you click the tab, "No Key present" is shown. Present a Key to your computer. Then click
at the top of the tab.
- Click
in the message that asks to allow authentication into Key Services. Key information is retrieved and displayed in the Status tab.
- If you want to check status for another Key, remove the Key currently presented. Information on that Key is cleared from the tab and "No Key present" is shown.
- Present the other Key to your computer. Then click at the top of the Key Status tab.
- Click in the message that asks to allow authentication into Key Services. Key information is retrieved and displayed in the Status tab.
